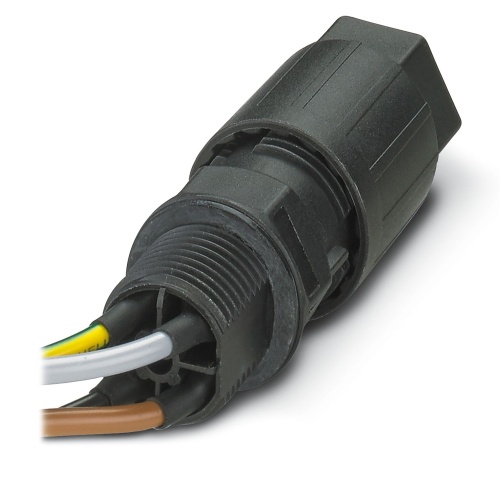

Phoenix Contact 1414678 Panel feed-through QPD W 3PE1,5 8-13 M20 0,5 BK
Normally In Stock
Code: 154040
Phoenix Contact 1414678 - Panel feed-through - 4 Positions - Cu - 20 AWG - 17.5 Amp - 690 V - IP66 - Individual Wire Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$22.15
Sale Price
$18.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1414678 The panel feed-through product family QPD has a single wire or IDC connection and accommodates up to three positions with PE, M20, and pin sizes ranging from 0.5 mm² to 1.5 mm². It operates at 690 V and 17.5 A under power, has a black PA material, features a QUICKON nut for easy disconnection, and includes an external cable diameter of 10 mm to 13 mm with a corresponding cable length of 0.5 m.
Specifications
Component
Panel
Connector Amperage
17.5 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Panel Feed-Through
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
