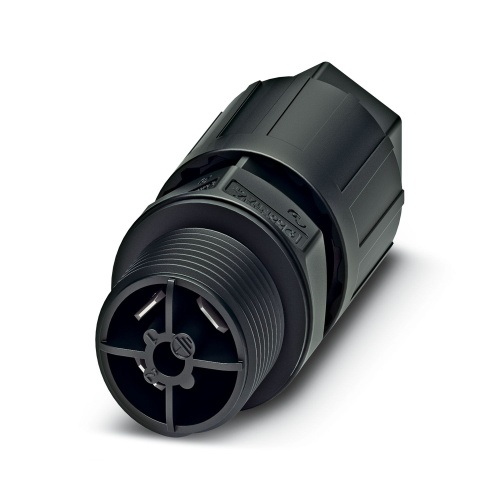

Phoenix Contact 1414689 Panel feed-through QPD W 2PE1,5 8-13 M20 FC BK
Normally In Stock
Code: 154039
Phoenix Contact 1414689 - Panel feed-through - 3 Positions - Cu - 20 AWG - 17.5 Amp - 690 V - IP66 - Spade Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$11.60
Sale Price
$9.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1414689 The QPD panel feed-through product features a spade connection or IDC connection for slip-on sleeves, accommodating up to 2+PE positions and sizes ranging from M20 pin with 0.5-1.5 mm2 wire gauge. It operates at 690 V, 17.5 A, and has a PA black color with a QUICKON nut, while also having an external cable diameter of 10-13 mm and a corresponding coding profile.
Specifications
Component
Panel
Connector Amperage
17.5 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
3
Sub Component
Panel Feed-Through
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
