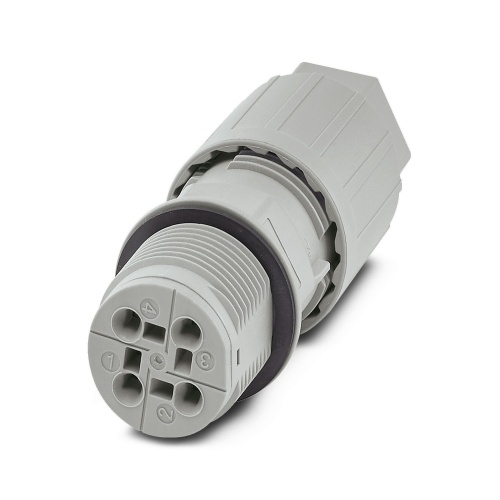

Phoenix Contact 1424002 Panel feed-through QPD W4X2,5 6-10 M25 DT GY
Normally In Stock
Code: 154036
Phoenix Contact 1424002 - Panel feed-through - 4 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - Push-In Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$22.04
Sale Price
$18.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1424002 The panel feed-through product features a push-in connection or IDC connection and is part of the QPD product family. It includes options with pin sizes ranging from 1mm² to 2.5mm² and voltage ratings up to 690V, while also supporting current ratings of up to 20A. The products come in various configurations, including those with a QUICKON nut for secure attachment, and have an external cable diameter spanning from 6mm to 10mm, with the same range of pin sizes mentioned earlier.
Specifications
Component
Panel
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Panel Feed-Through
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
