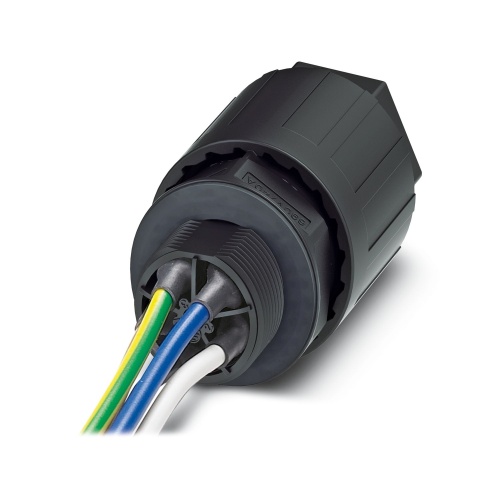

Phoenix Contact 1410395 Panel feed-through QPD W 4PE6,0 12-20 M25 1,0 BK
Normally In Stock
Code: 154035
Phoenix Contact 1410395 - Panel feed-through - 5 Positions - Cu - 14 AWG - 40 Amp - 690 V - IP66 - Individual Wire Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$50.00
Sale Price
$41.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1410395 A QUICKON panel feed-through features multiple pins (4+PE-pos) that accommodate a range of cable diameters from 2.5 mm² to 20 mm². It is paired with a black QUICKON nut suitable for cables up to 20 mm in diameter, secured by an M25 connection thread. The cable itself consists of five 6.0 mm² wires, 1 meter long, cut flat at the end.
Specifications
Component
Panel
Connector Amperage
40 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Panel Feed-Through
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
