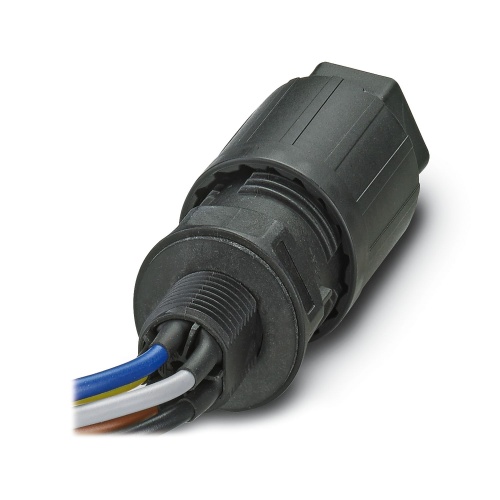

Phoenix Contact 1582557 Panel feed-through QPD W 4PE2,5 6-11 M25 0,5 BK
Normally In Stock
Code: 154034
Phoenix Contact 1582557 - Panel feed-through - 5 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - Individual Wire Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$26.30
Sale Price
$21.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1582557 The panel feed-through product family QPD offers a range of options with single wire connections that can be welded onto panels. The available positions include 4+PE and M25 pins, accommodating various wire sizes from 1 mm2 to 2.5 mm2. These products are designed for high voltage applications at 690 V and have a maximum current capacity of 20 A. The feed-throughs come in black color with a QUICKON nut, are coded externally, and have cable diameters ranging from 6 mm to 11 mm.
Specifications
Component
Panel
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Panel Feed-Through
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
