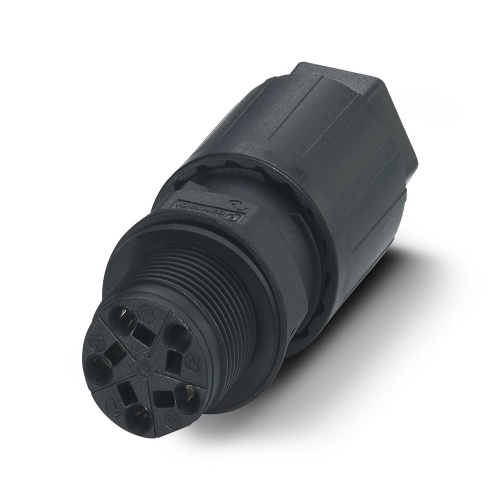

Phoenix Contact 1411433 Panel feed-through QPD W 4PE2,5 9-16 M25 DT BK
Normally In Stock
Code: 154029
Phoenix Contact 1411433 - Panel feed-through - 5 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - Push-In Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$29.41
Sale Price
$24.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1411433 The QUICKON panel feed-through has a black color and comes in positive earth (PE-positive) configurations, featuring a cable diameter range of 9-16mm. It is designed to accommodate 1.0-2.5mm² cables and has a maximum current rating of 20A at 690V, secured by a QUICKON nut with push-in spring-cage connection.
Specifications
Component
Panel
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Panel Feed-Through
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
