Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

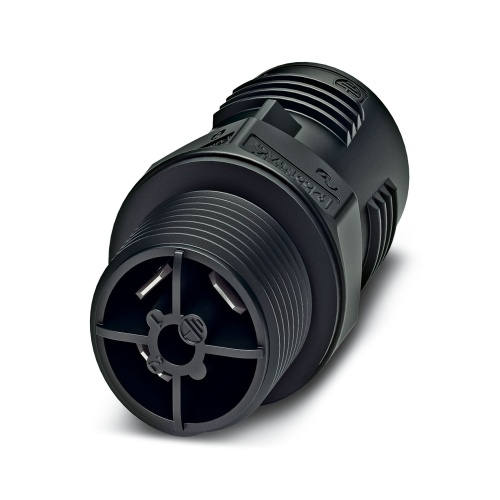

Phoenix Contact 1414692 Panel feed-through QPD W 2PE1,5 M20 FC BK
Normally In Stock
Code: 154028
Phoenix Contact 1414692 - Panel feed-through - 3 Positions - Cu - 20 AWG - 17.5 Amp - 690 V - IP66 - Spade Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$8.41
Sale Price
$7.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1414692 The QPD panel feed-through product family features a spade connection for slip-on sleeves that adhere to DIN 46247-2 standards, accommodating up to 0.5mm² to 1.5mm² conductors, with a maximum voltage of 690V and current rating of 17.5A, available in black color without a QUICKON nut, with a coding profile corresponding to the specified conductor size.
Specifications
Component
Panel
Connector Amperage
17.5 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
3
Sub Component
Panel Feed-Through
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
