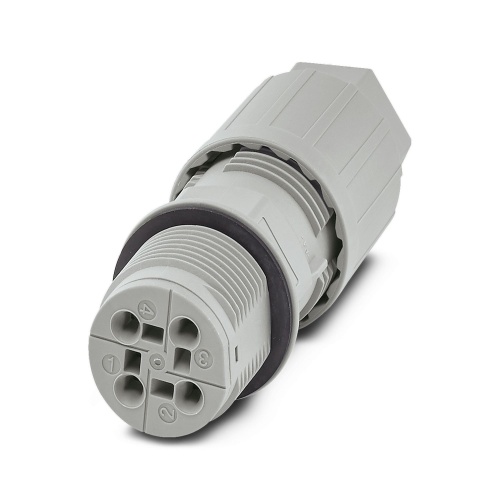

Phoenix Contact 1424006 Panel feed-through QPD W4X2,5 9-14 M25 DT GY
Normally In Stock
Code: 154024
Phoenix Contact 1424006 - Panel feed-through - 4 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - Push-In Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$22.04
Sale Price
$18.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1424006 The panel feed-through product family is QPD and it connects using either a push-in connection or an IDC connection, available in M25 pin configurations that range from 1mm2 to 2.5mm2. These products operate at 690V with a maximum current of 20A and are characterized by their PA rating, gray color, and feature a QUICKON nut for easy connections. The external cable diameter varies between 9mm to 14mm, all while maintaining the same wiring specifications.
Specifications
Component
Panel
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Panel Feed-Through
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
