Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

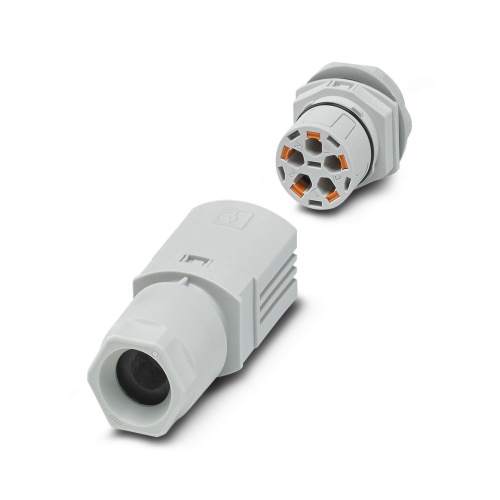

Phoenix Contact 1047344 Panel feed-through IPD WD 5P2,5 M25 GY
Normally In Stock
Code: 154021
Phoenix Contact 1047344 - Panel feed-through - 5 Positions - Cu - 20 AWG - 20 Amp - 600 V - IP66 - Push-In Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$17.38
Sale Price
$14.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1047344 The product features a panel feed-through with options for direct connection through push-in connections in various sizes, including 4+PE, M25, and from 0.5 mm² to 2.5 mm². It is rated for 600 volts and 20 amps, falls under the PA category, has an external cable diameter of 7-16mm, and is available in light gray with a matching push-in connection system.
Specifications
Component
Panel
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Panel Feed-Through
Connector Voltage
600 Volt
Features
Convenient: quick and easy assembly without special tools
Fast and easy startup, thanks to tool-free Push-in connection technology
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
