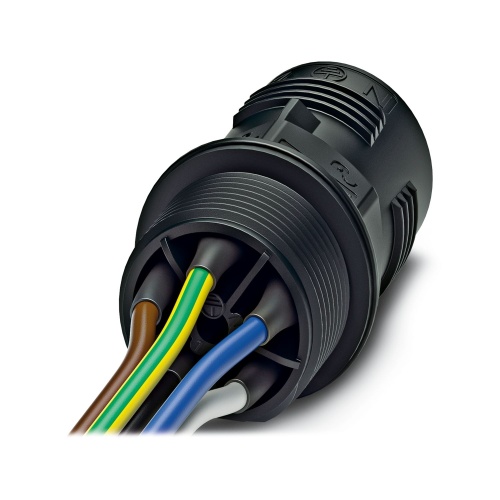

Phoenix Contact 1414737 Panel feed-through QPD W 4PE1,5 M25 1,0 BK
Normally In Stock
Code: 154018
Phoenix Contact 1414737 - Panel feed-through - 5 Positions - Cu - 20 AWG - 17.5 Amp - 690 V - IP66 - Individual Wire Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$19.44
Sale Price
$16.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1414737 The panel feed-through is part of the QPD product family and connects using single wires with up to four positions plus one earth position (PE). The available wire sizes range from 0.5 mm² to 1.5 mm², and it operates at a maximum voltage of 690 V and current of 17.5 A. The feed-through is designed as a PA module in black color but lacks the QUICKON nut. It includes a coding profile and has a cable length of 1 meter.
Specifications
Component
Panel
Connector Amperage
17.5 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Panel Feed-Through
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
