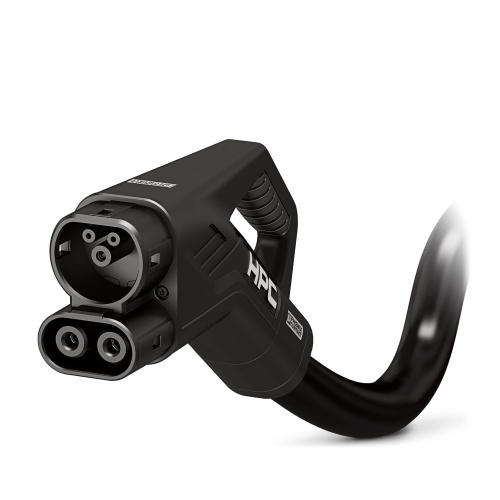

Phoenix Contact 1085638 DC charging cable EV-T2HPCC-DC500A-5,0M50ECBK11
Normally In Stock
Code: 153848
Phoenix Contact 1085638 EV-T2HPCC-DC500A-5,0M50ECBK11 ,Plastic,EVM-1 incordance with EN 50620 DC charging cable
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$5231.26
Sale Price
$4359.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1085638 The CHARX professional connector is a type 2 CCS cable capable of withstanding up to 700 A in boost mode and 500 A in permanent operation, operating at a maximum voltage of 1000 V DC, featuring cooled vehicle charging connector and cooled cable that measures 5m, made from black straight material with replaceable parts including the mating face frame and DC power contacts, bearing the Phoenix Contact CONTACT logo and adhering to IEC 62196-3-1 standards for use in charging electric vehicles via direct current (DC).
Specifications
Component
Cable
Connector Amperage
2 Amp
Connector Amperage
500 Amp
Connector Material
Plastic
Connector protection
IP54
Manufacturer
Phoenix Contact
Connector Material
EVM-1 Incordance With EN 50620
Sub Component
DC Charging Cable
Connector Voltage
1000 Volt
Connector Voltage
30 Volt
Features
Complete product range
The right charging cable for every application, from the carport to the charging park
Ultra-fast HPC charging, with temporary power up to 500 kW
Convenient handling due to the ergonomic design
Available with your logo on request - for consistent branding of your charging station
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Additional safety thanks to integrated leakage sensors and a wear indicator in the cable sheath
Convenient communication interfaces via CAN bus and digital output
Maintenance-friendly replacement of the mating face frame without draining the coolant
