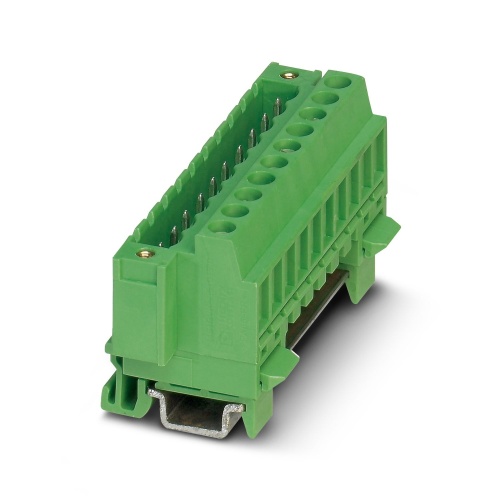

Phoenix Contact 1803060 A DIN rail connector with a nominal cross-section of 2.5mm² and a green color is rated for a nominal current of 12A at a maximum voltage of 320V (III/2). The contact surface is made of tin, with a pin-type connection and 13 potentials. The connector has one row and 13 positions, offering 13 connections. Part of the MSTBVK 2,5/..-GF product range, it features a 5.08mm pitch, connects via screw attachment with tension sleeve, and is available in an L-slotted screw head design. The conductor meets a 0° connection direction, and is secured using a screw locking mechanism. Mounting is achieved through a threaded flange, packaged in cardboard for convenience.
