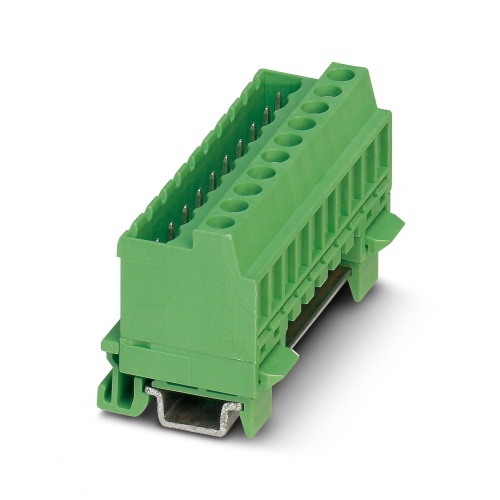

Phoenix Contact 1788936 A DIN rail connector features a nominal cross-sectional area of 2.5 mm² and has a green color with a rated current capacity of 12 A at a voltage rating of 320 V (III/2). The contact surface is made of tin and uses a pin connection type, supporting 23 separate potentials and having one row and twenty-three positions for connections. This connector belongs to the product range MSTBVK 2,5/..-G and has a pitch of 5.08 mm, secured via a screw connection with a tension sleeve, featuring an L Slotted screw head. The conductor and PCB connection direction is at 0° degrees, utilizing a COMBICON MSTB 2,5 plug-in system without locking, mounting, or packaging in cardboard.
