Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

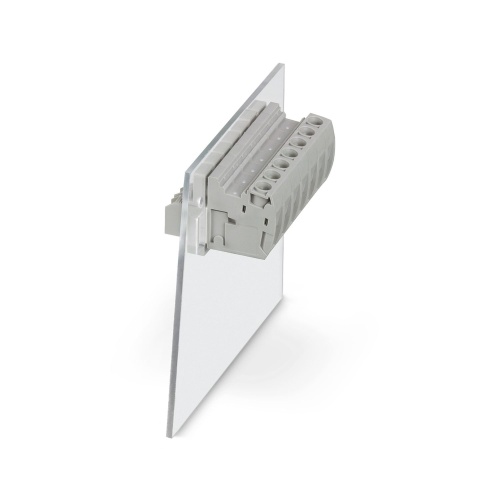

Phoenix Contact 3056996 Panel feed-through terminal block UW 4-POT-SCM
Normally In Stock
Code: 153299
Phoenix Contact 3056996 UW 4-POT-SCM ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $2.71
Sale Price
$2.26
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

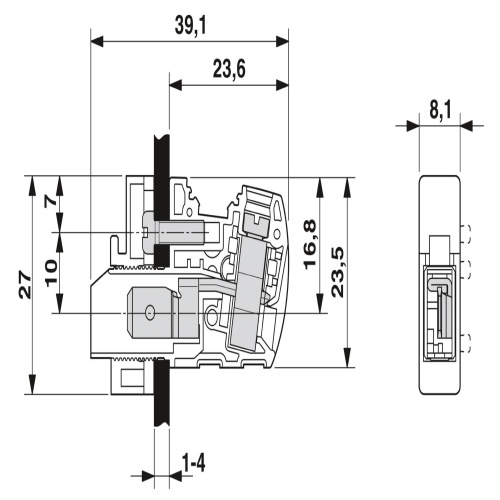

Phoenix Contact 3056996 A panel feed-through terminal block features a screw connection with tension sleeve and spade connections, accommodating one position. It's designed to handle load currents up to 18 A and comes in various cross-sectional sizes from 0.2 mm2-6 mm2. The connection direction of the conductor aligns with the plug-in direction at 0 ° angle, measuring a width of 8.1 mm and boasting a gray color.
Specifications
Component
Panel
Connector Amperage
41 Amp
Connector Amperage
18 Amp
Connector Material
I
Connector Material
PA
Connector Voltage
6 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Number of Connections
2
Number of Positions
1
Connector Voltage
500 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
