Code: 153282

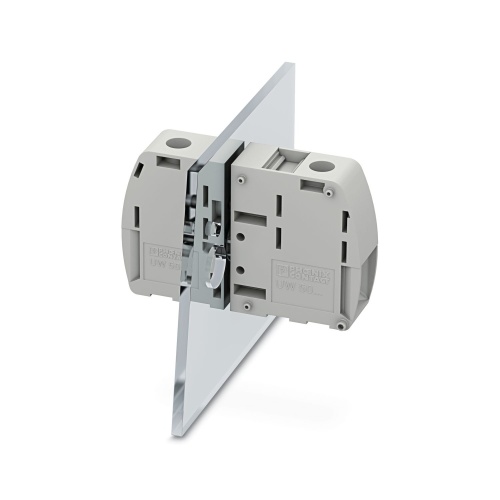

Phoenix Contact 1713709 Panel feed-through terminal block UW 50/S
Normally In Stock
Phoenix Contact 1713709 UW 50/S ,Al alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $29.18
Sale Price
$24.32
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1713709 The panel feed-through terminal block features a screw connection method utilizing a tension sleeve, with one position available and capable of handling a maximum load current of 150 A. The connection direction of the conductor is aligned with the plug-in direction at 0 degrees, while the terminal block measures 18.8 mm in width and has a gray color.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Voltage Rating
800 Volt
Terminal Block Amperage
150 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
8 Kv
Terminal Block Voltage Rating
6 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
