Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

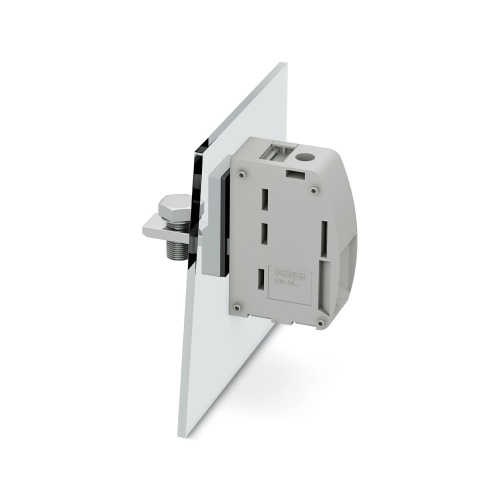

Phoenix Contact 1713242 Panel feed-through terminal block UW 95-POT/S
Normally In Stock
Code: 153280
Phoenix Contact 1713242 UW 95-POT/S ,Al alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $58.22
Sale Price
$48.52
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1713242 The panel feed-through terminal block features a single position, allowing for secure connection using either a screw connection with tension sleeve or a cable lug connection. The specified load current is 232 A, and the connection direction of the conductor to the plug-in direction is 0 degrees. The terminal block measures 25 mm in width and has a gray color.
Specifications
Component
Panel
Connector Amperage
232 Amp
Connector Voltage
6 Kv
Connector Voltage
8 Kv
Connector Material
Polyamide
Connector Material
Aluminum Alloy
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Number of Connections
2
Number of Positions
1
Connector Voltage
1000 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
