Code: 153216

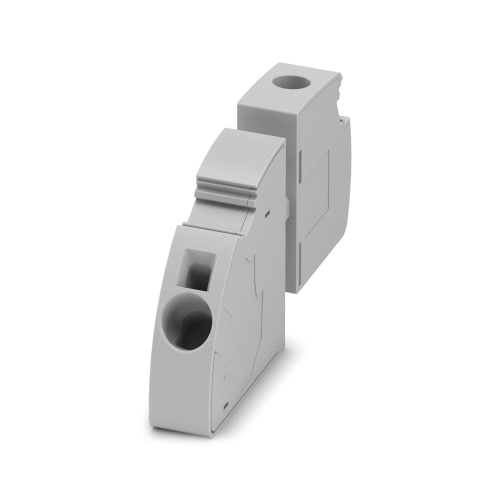

Phoenix Contact 1844387 Panel feed-through terminal block PWO 16-UW
Normally In Stock
Phoenix Contact 1844387 PWO 16-UW ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships within 7-14 days. Call for ship time$11.69
Sale Price
$9.74
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1844387 The terminal block features a push-in spring connection or a screw connection with tension sleeve and has one position available for connecting conductors, capable of handling loads up to 76 amps. The cross-sectional area of the conductor can range from 1.5mm² to 16mm², allowing for flexibility in choosing the optimal size for the specific application. The connection direction can be adjusted at a 45-degree angle and the terminal block measures 12mm in width, with a standard color being gray.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Voltage Rating
800 Volt
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
8 Kv
Terminal Block Voltage Rating
6 Kv
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
