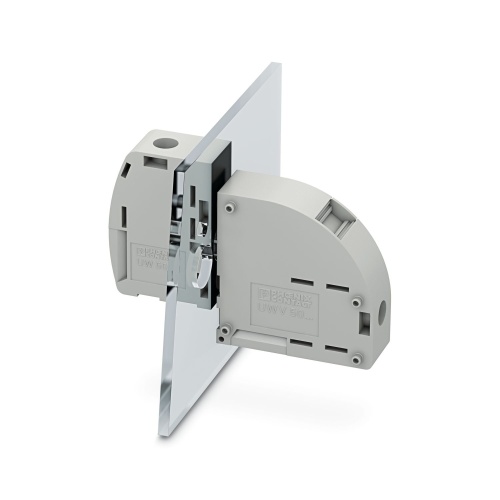

Phoenix Contact 1713711 Panel feed-through terminal block UWV 50/S
Normally In Stock
Code: 153209
Phoenix Contact 1713711 UWV 50/S ,Al alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $23.76
Sale Price
$19.80
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

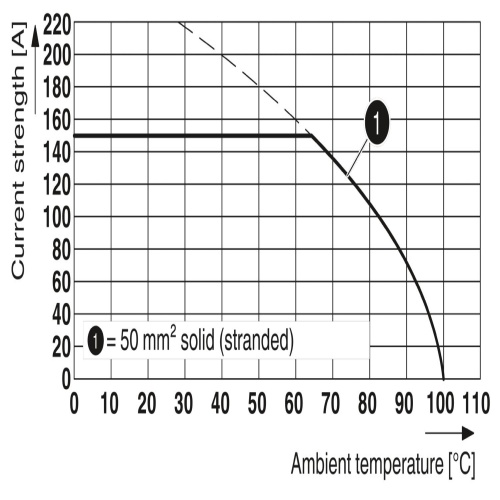

Phoenix Contact 1713711 The panel feed-through terminal block features a screw connection method using a tension sleeve for secure attachment, available in one position, with a maximum load current capacity of 150 A, and can be connected at an angle of -90 degrees to the plug-in direction, measuring 18.8 mm in width and distinguished by its gray color.
Specifications
Component
Panel
Connector Amperage
150 Amp
Connector Voltage
6 Kv
Connector Voltage
8 Kv
Connector Material
Polyamide
Connector Material
Aluminum Alloy
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Number of Connections
2
Number of Positions
1
Connector Voltage
1000 Volt
Connector Voltage
800 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
