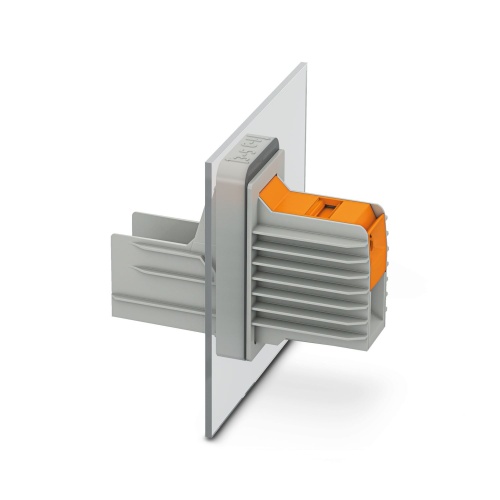

Phoenix Contact 1708753 Panel feed-through terminal block TW 95/ 2-CL
Normally In Stock
Code: 153207
Phoenix Contact 1708753 TW 95/ 2-CL ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $119.11
Sale Price
$99.26
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1708753 The panel feed-through terminal block features a T-LOX knee lever connection and cable lug connection with two positions available. The maximum load current it can handle is 232 amps, with a specific orientation for conductor placement that aligns with the plug-in direction at a 0-degree angle, measuring 71mm in width and boasting a gray color.
Specifications
Component
Panel
Connector Amperage
232 Amp
Connector Material
I
Connector Material
PA
Connector Voltage
6 Kv
Connector Voltage
8 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Number of Positions
2
Number of Connections
4
Connector Voltage
1000 Volt
Features
Lever actuation enables time-saving and smooth connection of large conductors
Defined contact force ensures that contact remains stable over the long term
90° open clamping space allows the conductor to be conveniently swiveled
Quick, tool-free mounting on the housing wall using a fixing wedge
