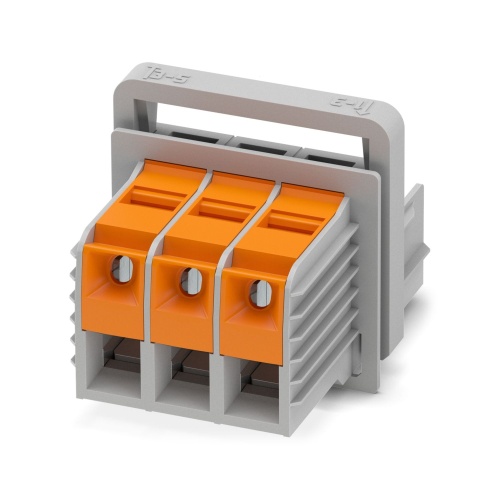

Phoenix Contact 1708746 Panel feed-through terminal block TW 50/ 3-CL
Normally In Stock
Code: 153206
Phoenix Contact 1708746 TW 50/ 3-CL ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $78.24
Sale Price
$65.20
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

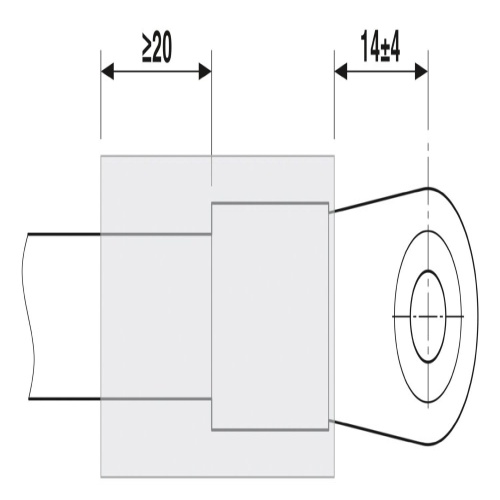

Phoenix Contact 1708746 The terminal block has a panel feed-through design with three positions for connections. It features T-LOX knee lever connections and cable lug connections, suitable for loads carrying up to 150 A of current. The conductor can be connected at an angle of 0 degrees from the plug-in direction. The cross-section of the terminals ranges from 10 mm² to 50 mm², with a width of 78 mm and a gray color.
Specifications
Component
Panel
Connector Amperage
150 Amp
Connector Material
I
Connector Material
PA
Connector Voltage
6 Kv
Connector Voltage
8 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Number of Positions
3
Number of Connections
6
Connector Voltage
1000 Volt
Features
Lever actuation enables time-saving and smooth connection of large conductors
Defined contact force ensures that contact remains stable over the long term
90° open clamping space allows the conductor to be conveniently swiveled
Quick, tool-free mounting on the housing wall using a fixing wedge
