Code: 153195

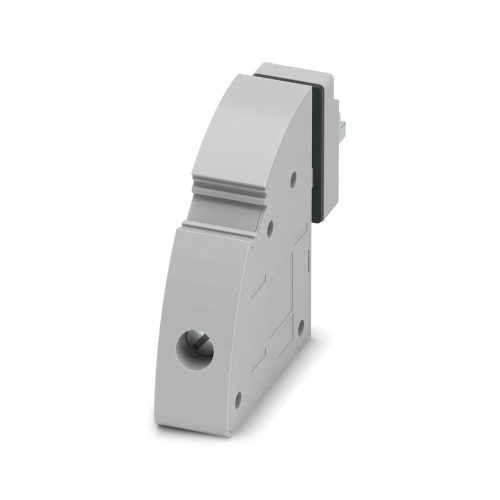

Phoenix Contact 3073568 Panel feed-through terminal block UWV 25-POT
Normally In Stock
Phoenix Contact 3073568 UWV 25-POT ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $14.83
Sale Price
$12.36
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

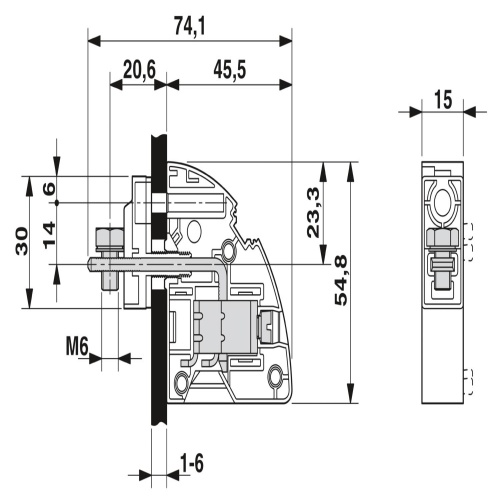

Phoenix Contact 3073568 The panel feed-through terminal block features a screw connection with tension sleeve and cable lug connection options, accommodating one position for connections with a load current capacity of up to 101 A. The cross-sectional area ranges from 6 mm² to 35 mm², while the angle between conductor connections and plug-in direction is -90 °. The terminal block's dimensions include a width of 15.1 mm and a gray color.
Specifications
Terminal Block Voltage Rating
630 Volt
Terminal Block Amperage
125 Amp
Terminal Block Amperage
101 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
6 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
