Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 153192

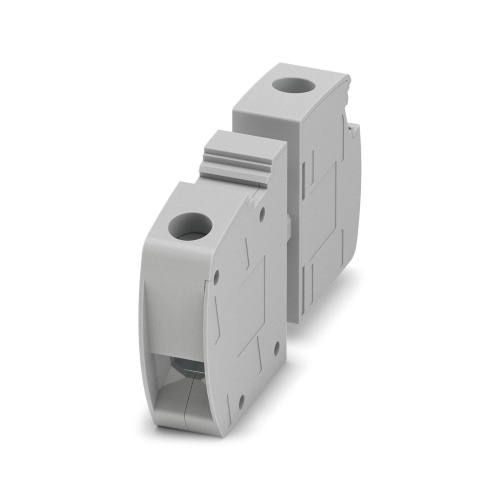

Phoenix Contact 3073348 Panel feed-through terminal block UW 16
Normally In Stock
Phoenix Contact 3073348 UW 16 ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $17.27
Sale Price
$14.39
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3073348 The panel feed-through terminal block has a screw connection with tension sleeve method and features one position for connecting loads, which can handle up to 76 A of current. The cross-sectional area ranges from 6 mm2 to 25 mm2, and the connection direction is at a 0° angle. The terminal block measures 12 mm in width and has a gray color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Amperage
101 Amp
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
6 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
