Code: 153189

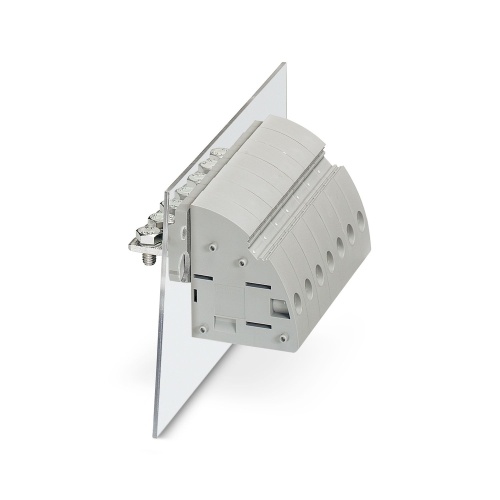

Phoenix Contact 3073571 Panel feed-through terminal block UWV 25-POT/S
Normally In Stock
Phoenix Contact 3073571 UWV 25-POT/S ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $15.06
Sale Price
$12.55
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

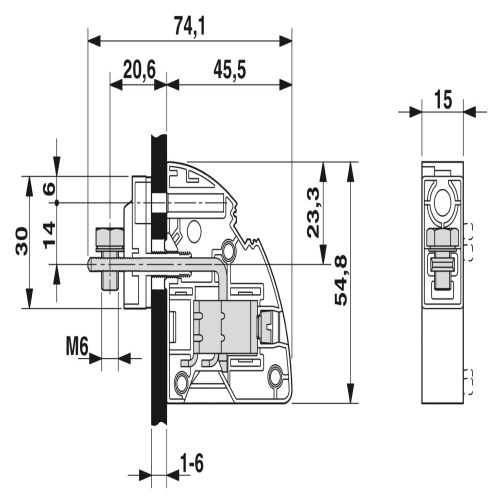

Phoenix Contact 3073571 The panel feed-through terminal block features a screw connection with tension sleeve or a cable lug connection, accommodating one position, capable of handling load currents up to 101 A, while accepting conductors with cross sections ranging from 6 mm² to 35 mm². The plug-in direction is offset by 90°, and the overall dimensions are 15 mm in width, with a standard gray color scheme.
Specifications
Terminal Block Voltage Rating
630 Volt
Terminal Block Amperage
125 Amp
Terminal Block Amperage
101 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
6 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
Downloads
