Code: 153183

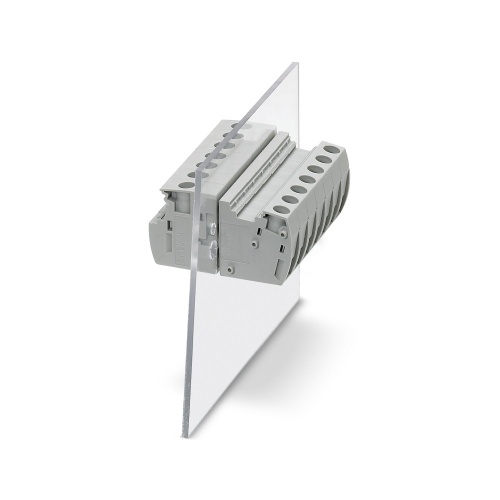

Phoenix Contact 3073319 Panel feed-through terminal block UW 4/S
Normally In Stock
Phoenix Contact 3073319 UW 4/S ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $9.14
Sale Price
$7.62
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

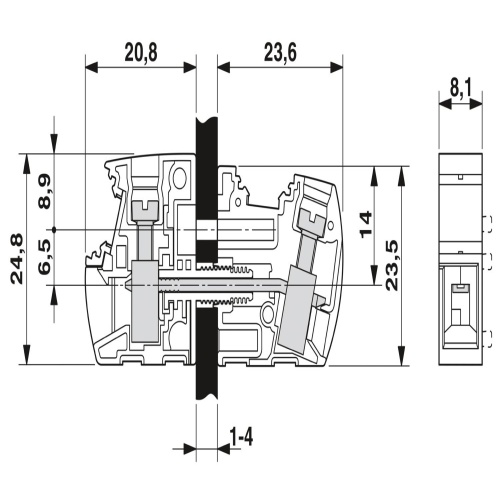

Phoenix Contact 3073319 A panel feed-through terminal block features a screw connection with tension sleeve and has one position available for connecting conductors, accommodating loads up to 32 A. The cross-sectional area ranges from 0.2 mm² to 6 mm², and the connection direction of the conductor aligns with the plug-in direction at an angle of 0°. The terminal block measures 8.1 mm in width and is typically gray in color.
Specifications
Terminal Block Amperage
41 Amp
Terminal Block Amperage
32 Amp
Terminal Block Voltage Rating
320 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
4 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
