Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 153178
Phoenix Contact 3073542 Panel feed-through terminal block UWV 16-POT
Normally In Stock
Phoenix Contact 3073542 UWV 16-POT ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $12.00
Sale Price
$10.00
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

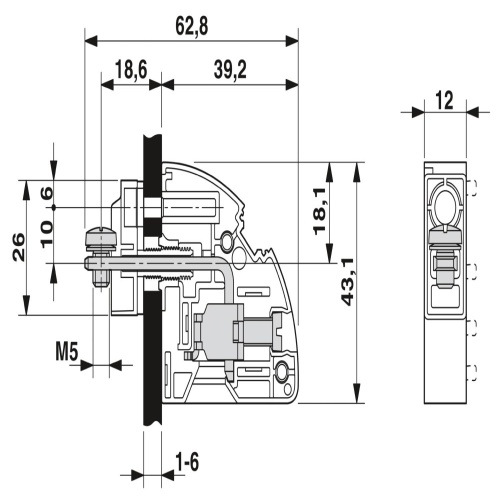

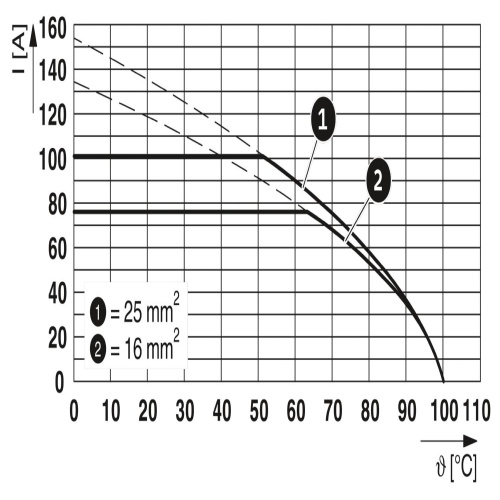

Phoenix Contact 3073542 A panel feed-through terminal block features a screw connection with tension sleeve and cable lug connection, allowing for one position to be utilized, capable of supporting up to 76 A of load current. The cross-sectional area ranges from 6 mm² to 25 mm², accommodating various conductor sizes. When connecting conductors to the plug-in direction, it is recommended to approach at a -90 ° angle and maintain a width of approximately 12.1 mm, with a standard color being gray.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Amperage
101 Amp
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
6 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel

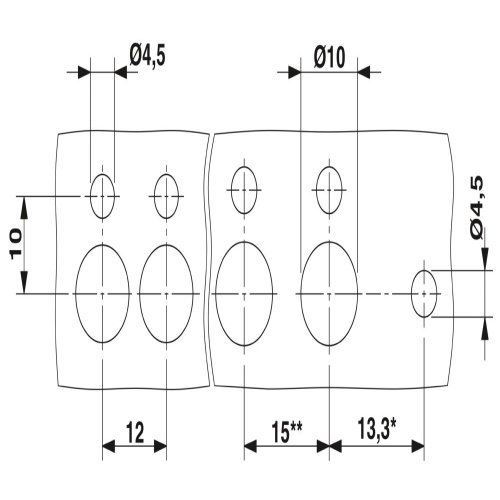

Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds

Code: 153178
Phoenix Contact 3073542 Panel feed-through terminal block UWV 16-POT
$12.00
Sale Price
$10.00
MUST BUY IN PACKS OF 50
