Code: 153176

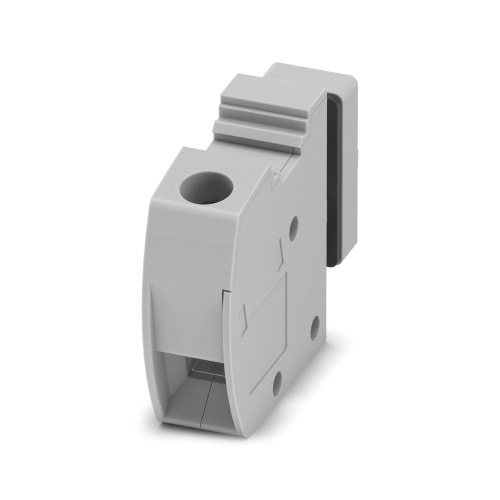

Phoenix Contact 3073461 Panel feed-through terminal block UW 10-POT
Normally In Stock
Phoenix Contact 3073461 UW 10-POT ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $11.78
Sale Price
$9.82
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

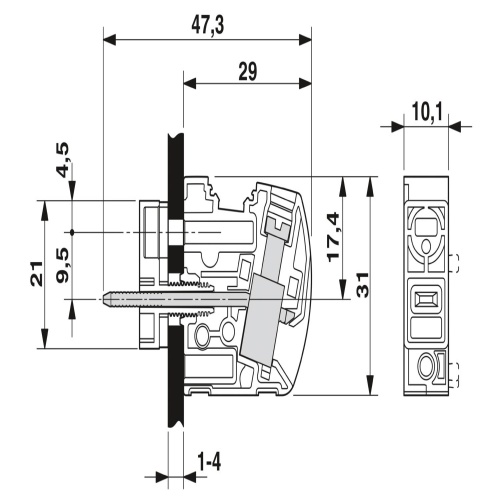

Phoenix Contact 3073461 The terminal block has a panel feed-through design and can be connected using either screw connections with tension sleeves or solder connections, accommodating one position for load current transmission. The recommended cross-section range is between 0.5 mm2 and 16 mm2. When connecting the conductor to the plug-in direction, a 0° angle is preferred. The terminal block measures 10.1 mm in width and has a gray color.
Specifications
Terminal Block Voltage Rating
400 Volt
Terminal Block Amperage
57 Amp
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
5 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
