Code: 153175

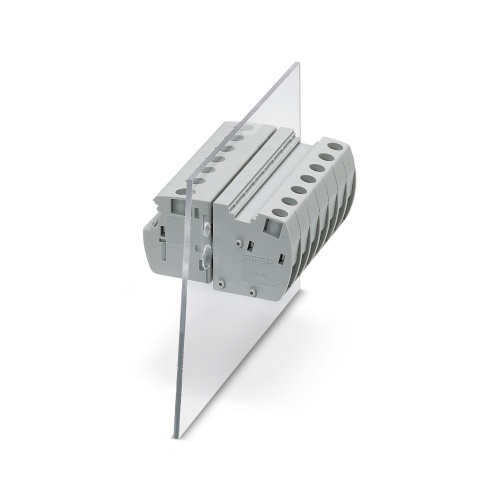

Phoenix Contact 3073335 Panel feed-through terminal block UW 10/S
Normally In Stock
Phoenix Contact 3073335 UW 10/S ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships within 7-14 days. Call for ship time$14.34
Sale Price
$11.95
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

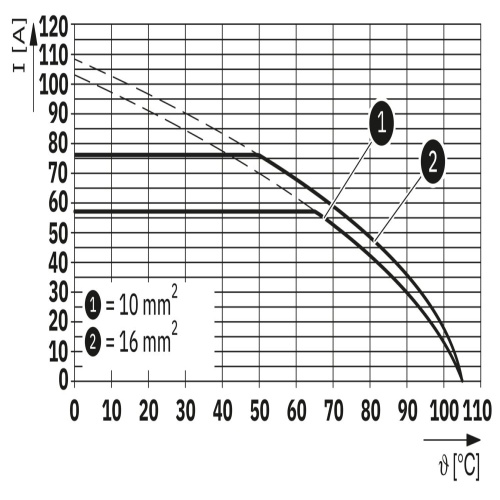

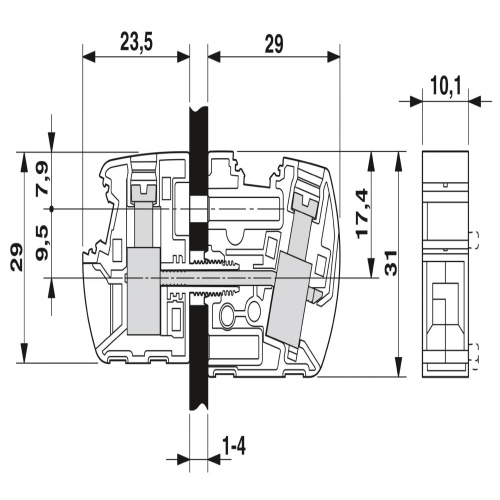

Phoenix Contact 3073335 The panel feed-through terminal block features a screw connection with tension sleeve for secure attachment, with one position available and rated for load currents up to 57 A. The cross-sectional area ranges from 0.5 mm² to 16 mm², allowing for flexible connections. With a connection direction of 0°, the conductor can be securely attached in the same plane as the plug-in direction. The terminal block measures 10.1 mm in width and has a gray color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Amperage
57 Amp
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
6 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
