Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 153168

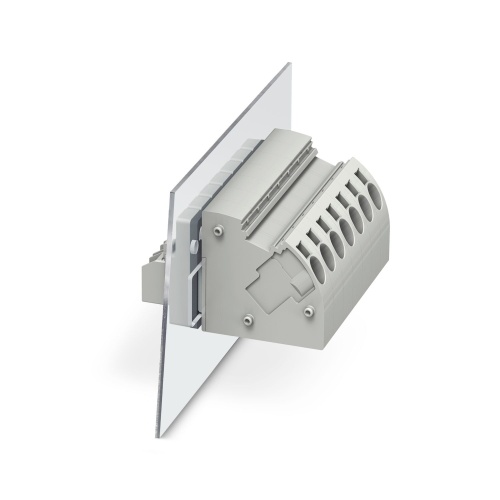

Phoenix Contact 3056925 Panel feed-through terminal block PWO 4-POT-SCM/S
Normally In Stock
Phoenix Contact 3056925 PWO 4-POT-SCM/S ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $2.26
Sale Price
$1.88
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3056925 The terminal block has a push-in spring connection and spade connection methods available with one position available for connecting conductors, capable of handling up to 18 A of load current, featuring cross sections ranging from 0.2 mm² to 4 mm², with a 45° angle for conductor insertion in relation to the plug-in direction, measuring 8.1 mm in width and having a gray color.
Specifications
Terminal Block Voltage Rating
800 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
18 Amp
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
8 Kv
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
Downloads

Code: 153168
Phoenix Contact 3056925 Panel feed-through terminal block PWO 4-POT-SCM/S
$2.26
Sale Price
$1.88
MUST BUY IN PACKS OF 50
