Code: 153167

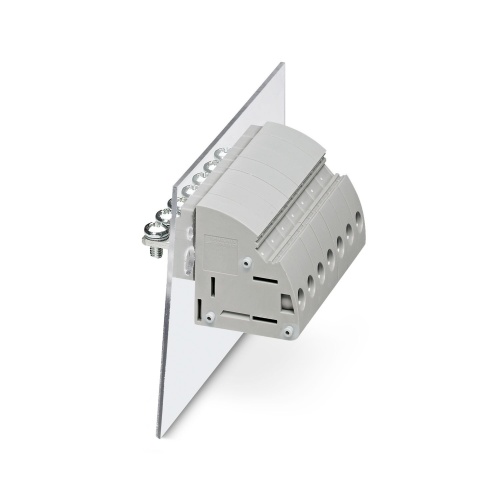

Phoenix Contact 3073555 Panel feed-through terminal block UWV 16-POT/S
Normally In Stock
Phoenix Contact 3073555 UWV 16-POT/S ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $11.57
Sale Price
$9.64
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3073555 The panel feed-through terminal block features a screw connection with tension sleeve as well as cable lug connections, with one position available for connection, capable of handling a load current of up to 76 A and accommodating conductors with cross sections ranging from 6 mm2 to 25 mm2. The angle between the conductor and plug-in direction is -90 °, allowing for a snug fit within the terminal block's width of 12.1 mm, while its metallic color is gray.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Amperage
101 Amp
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
6 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
