Code: 153166

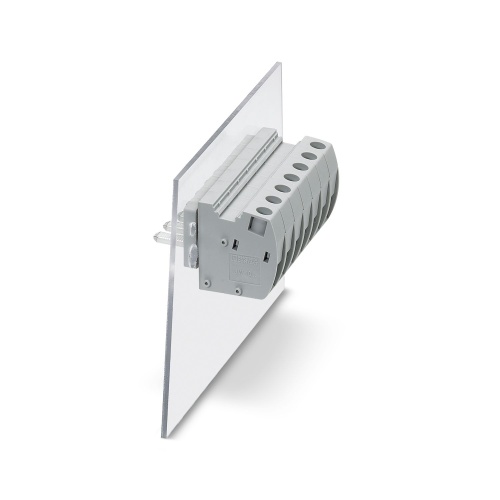

Phoenix Contact 3073474 Panel feed-through terminal block UW 10-POT/S
Normally In Stock
Phoenix Contact 3073474 UW 10-POT/S ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $10.13
Sale Price
$8.44
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3073474 The terminal block has a single position with screw connections and tension sleeves, as well as solder connections available, accommodating load currents up to 57 A through cross-sections ranging from 0.5 mm2 to 16 mm2, with the conductor connection aligned at a 0° angle to the plug-in direction and measuring 10.1 mm in width, characterized by a gray color.
Specifications
Terminal Block Voltage Rating
400 Volt
Terminal Block Amperage
57 Amp
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
5 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
