Code: 153151

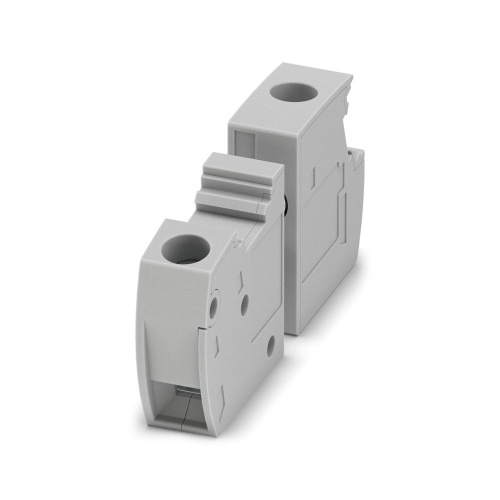

Phoenix Contact 3073306 Panel feed-through terminal block UW 4
Normally In Stock
Phoenix Contact 3073306 UW 4 ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $9.42
Sale Price
$7.85
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

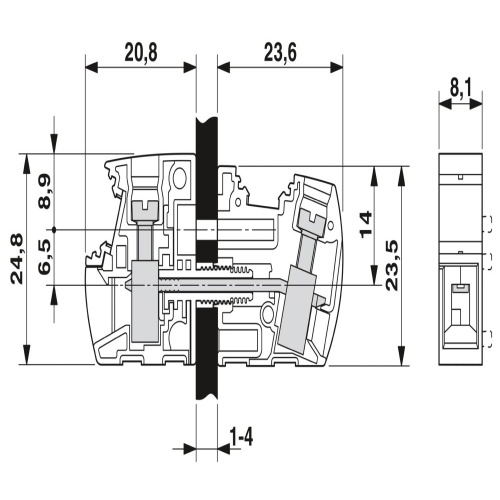

Phoenix Contact 3073306 The panel feed-through terminal block has a screw connection with tension sleeve and is available in one position. It can handle loads of up to 32 A, with cross-sections ranging from 0.2 mm² to 6 mm². The connectors are inserted at an angle of 0 ° and have a width of 8.1 mm, while the exterior is a gray color.
Specifications
Terminal Block Amperage
41 Amp
Terminal Block Amperage
32 Amp
Terminal Block Voltage Rating
320 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
4 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
