Code: 153146

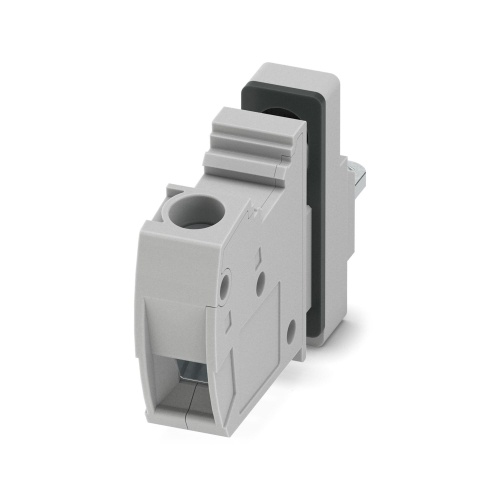

Phoenix Contact 3059757 Panel feed-through terminal block UW 4-POT-SL
Normally In Stock
Phoenix Contact 3059757 UW 4-POT-SL ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $2.42
Sale Price
$2.02
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

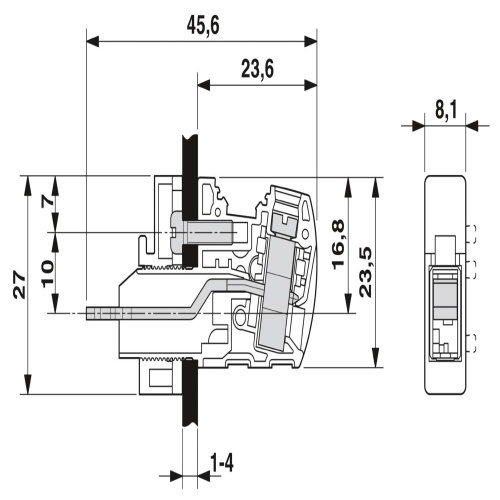

Phoenix Contact 3059757 The panel feed-through terminal block features a screw connection with tension sleeve or solder connection method and is designed for single-position use, accommodating load currents up to 32 A through cross sections ranging from 0.2 mm2-6 mm2. The connection direction of the conductor to the plug-in direction aligns at 0°, while its width measures 8.1 mm and has a gray color.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Amperage
41 Amp
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
6 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
