Code: 153144
Phoenix Contact 3073322 Panel feed-through terminal block UW 10
Normally In Stock
Phoenix Contact 3073322 UW 10 ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $14.34
Sale Price
$11.95
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

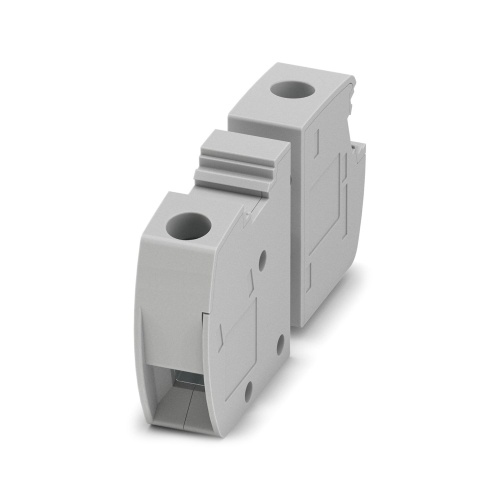

Phoenix Contact 3073322 The panel feed-through terminal block features a screw connection method with a tension sleeve, accommodating one position for connecting loads with a cross-sectional area ranging from 0.5 mm2 to 16 mm2. The terminals have a specific connection direction relative to the plug-in direction of 0 degrees, and their width is approximately 10.1 mm. Additionally, these blocks are typically colored gray in standard configurations.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Amperage
57 Amp
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
6 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
