Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 153140

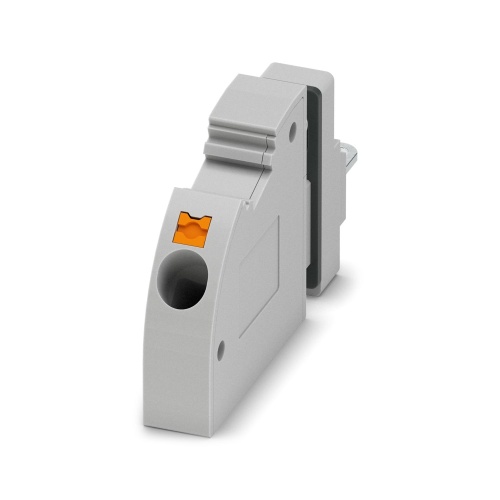

Phoenix Contact 3059731 Panel feed-through terminal block PW 4-POT-SL
Normally In Stock
Phoenix Contact 3059731 PW 4-POT-SL ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $3.30
Sale Price
$2.75
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3059731 The panel feed-through terminal block has a push-in spring connection or solder connection option with one position available for connecting a load current of up to 32 A, supported by conductor cross sections ranging from 0.2 mm² to 4 mm². The connection direction is set at a 45° angle relative to the plug-in direction, while its width measures approximately 8.1 mm and features a gray color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
8 Kv
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
