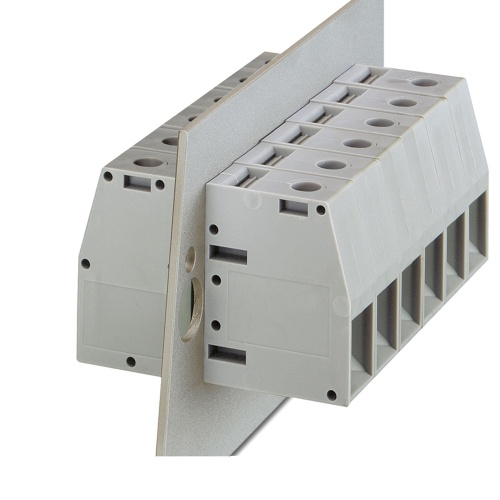

Phoenix Contact 0708739 Panel feed-through terminal block HDFK 50
Normally In Stock
Code: 153137
Phoenix Contact 0708739 HDFK 50 ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$40.85
Sale Price
$34.04
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0708739 A panel feed-through terminal block features a screw connection with tension sleeve for a single position, accommodating load currents up to 150 A and featuring cross sections ranging from 16 mm2 to 50 mm2, with the conductor orientation matching the plug-in direction at 0 degrees, situated within a width of 18.8 mm and colored gray.
Specifications
Component
Panel
Connector Amperage
150 Amp
Connector Material
I
Connector Material
PA
Connector Voltage
8 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Number of Connections
2
Number of Positions
1
Connector Voltage
690 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
