Code: 153126

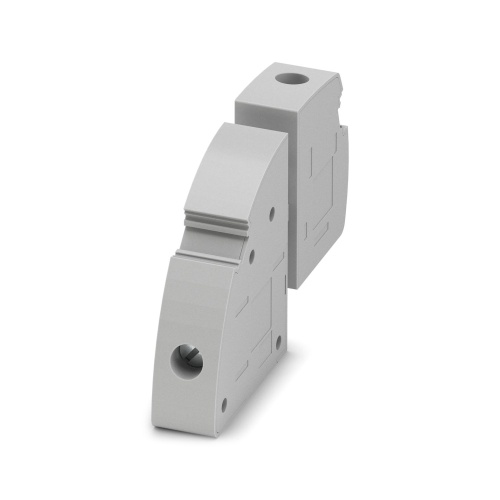

Phoenix Contact 3073445 Panel feed-through terminal block UWV 25
Normally In Stock
Phoenix Contact 3073445 UWV 25 ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $18.18
Sale Price
$15.15
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3073445 The terminal block features a screw connection with tension sleeve for secure attachment and comes in one position. It can handle load currents of up to 101 A, with cross-sectional areas ranging from 6 mm² to 35 mm². The connection direction of the conductor is at a -90 ° angle, while the overall width of the terminal block is 15 mm, with a standard gray color.
Specifications
Terminal Block Voltage Rating
630 Volt
Terminal Block Amperage
125 Amp
Terminal Block Amperage
101 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
6 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
