Code: 153125

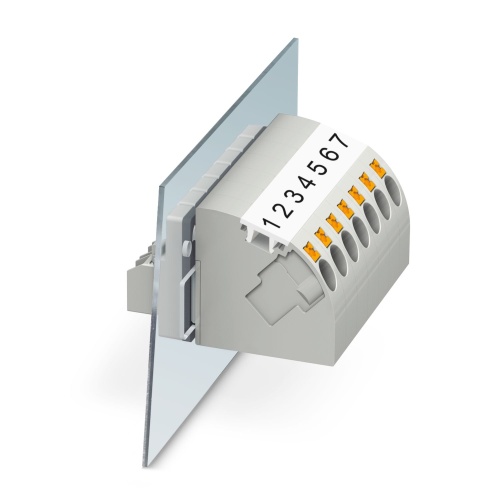

Phoenix Contact 3056938 Panel feed-through terminal block PW 4-POT-SCM
Normally In Stock
Phoenix Contact 3056938 PW 4-POT-SCM ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $3.41
Sale Price
$2.84
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3056938 The terminal block features a push-in spring connection or spade connection method, accommodating one position, capable of handling loads up to 18 amps with cross-sectional areas ranging from 0.2-4 square millimeters. The angle between the conductor and plug-in direction is set at 45 degrees, while the overall width measures 8.1mm and exhibits a gray color.
Specifications
Terminal Block Voltage Rating
800 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
18 Amp
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
8 Kv
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
Code: 153125
Phoenix Contact 3056938 Panel feed-through terminal block PW 4-POT-SCM
$3.41
Sale Price
$2.84
MUST BUY IN PACKS OF 50
