Code: 153120

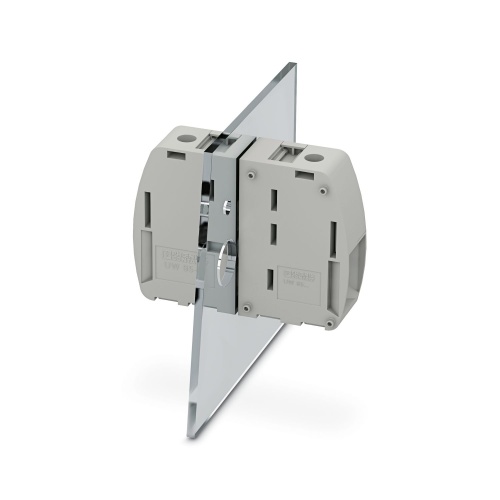

Phoenix Contact 1713225 Panel feed-through terminal block UW 95-F/S
Normally In Stock
Phoenix Contact 1713225 UW 95-F/S ,Al alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $62.75
Sale Price
$52.29
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1713225 A panel feed-through terminal block features a screw connection method using a tension sleeve in both connections and has one position available for loading up to 232 A of current, with the conductor connected at a 0° angle relative to the plug-in direction, measuring 25 mm in width and having an outer terminal half with a screw flange and a gray color.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Amperage
232 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
8 Kv
Terminal Block Voltage Rating
6 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Screwable flange for superior mechanical stability
