Code: 153118
Phoenix Contact 1708751 Panel feed-through terminal block TW 50/ 6-CL
Normally In Stock
Phoenix Contact 1708751 TW 50/ 6-CL ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $126.12
Sale Price
$105.10
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

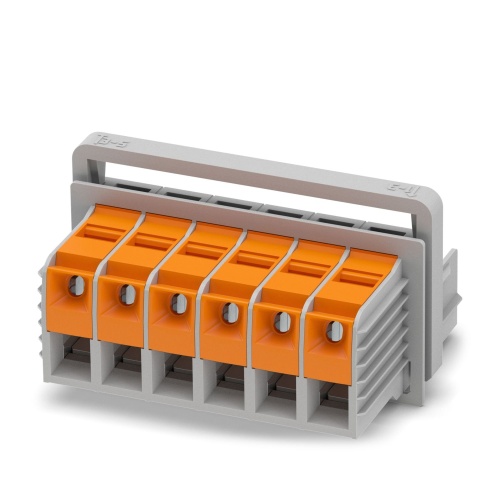

Phoenix Contact 1708751 A panel feed-through terminal block with a T-LOX knee lever connection and cable lug attachment has six available positions and can handle load currents up to 150 A, accommodating conductors with cross sections ranging from 10 mm² to 50 mm². The connection direction of the conductor is perpendicular to the plug-in direction at 0° degrees, and the overall width of the terminal block measures 138 mm in a gray color finish.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Amperage
150 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
8 Kv
Terminal Block Voltage Rating
6 Kv
Features
Lever actuation enables time-saving and smooth connection of large conductors
Defined contact force ensures that contact remains stable over the long term
90° open clamping space allows the conductor to be conveniently swiveled
Quick, tool-free mounting on the housing wall using a fixing wedge
