Code: 153117

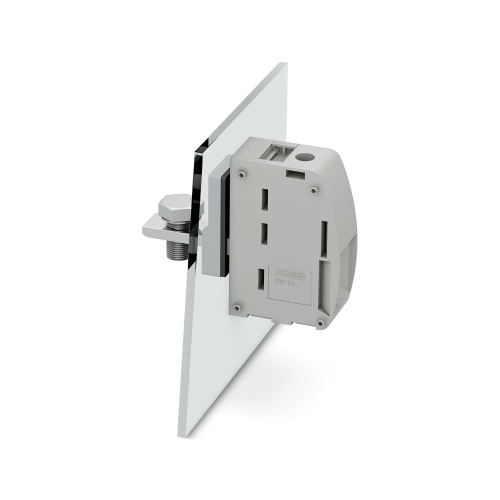

Phoenix Contact 1713243 Panel feed-through terminal block UW 95-POT-F/S
Normally In Stock
Phoenix Contact 1713243 UW 95-POT-F/S ,Al alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $45.65
Sale Price
$38.04
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1713243 A panel feed-through terminal block features a single-position connection method utilizing either a screw connection with tension sleeve or cable lug connection, supported by an outer terminal half equipped with a screw flange and measuring 25mm in width, distinguished by its gray color and accommodating a load current of up to 232 A, while the conductor is connected at a 0° angle relative to the plug-in direction.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Amperage
232 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
8 Kv
Terminal Block Voltage Rating
6 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
Screwable flange for superior mechanical stability
