Code: 153116

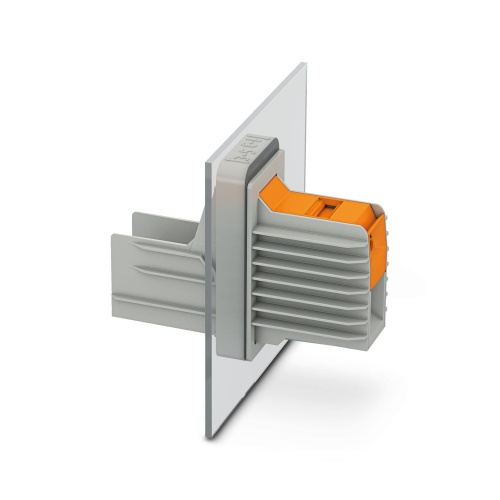

Phoenix Contact 1708755 Panel feed-through terminal block TW 95/ 4-CL
Normally In Stock
Phoenix Contact 1708755 TW 95/ 4-CL ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $198.77
Sale Price
$165.64
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1708755 The panel feed-through terminal block features a T-LOX knee lever connection and cable lug connection option, with four available positions for connection. It is designed to handle load currents of up to 232 amps, and the conductors can be connected in any direction relative to the plug-in direction, measured at 0 degrees. The dimensions of the terminal block measure 123 mm in width, and it has a gray coloration.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Amperage
232 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
8 Kv
Terminal Block Voltage Rating
6 Kv
Features
Lever actuation enables time-saving and smooth connection of large conductors
Defined contact force ensures that contact remains stable over the long term
90° open clamping space allows the conductor to be conveniently swiveled
Quick, tool-free mounting on the housing wall using a fixing wedge
