Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 153114

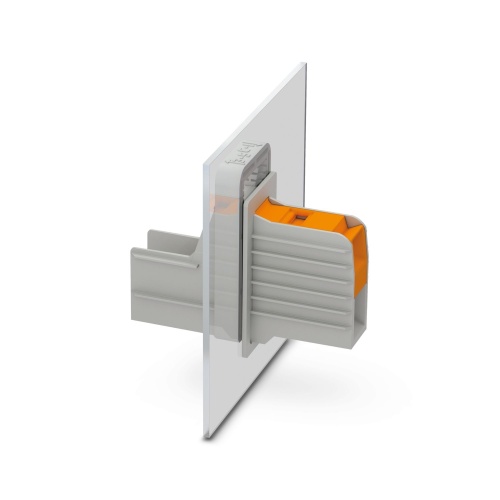

Phoenix Contact 1708744 Panel feed-through terminal block TW 50/ 1-CL
Normally In Stock
Phoenix Contact 1708744 TW 50/ 1-CL ,Copper Alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day $21.98
Sale Price
$18.32
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1708744 The terminal block features a T-LOX knee lever connection and cable lug connection method for a single-position connection. It can handle loads up to 150 A and has cross-sections ranging from 10 mm2 to 50 mm2. The connector direction is set at 0°, allowing the conductor to be connected in alignment with the plug-in direction. The overall dimensions are 38 mm in width, with a standard gray color.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Amperage
150 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
8 Kv
Terminal Block Voltage Rating
6 Kv
Features
Lever actuation enables time-saving and smooth connection of large conductors
Defined contact force ensures that contact remains stable over the long term
90° open clamping space allows the conductor to be conveniently swiveled
Quick, tool-free mounting on the housing wall using a fixing wedge
