Code: 153112

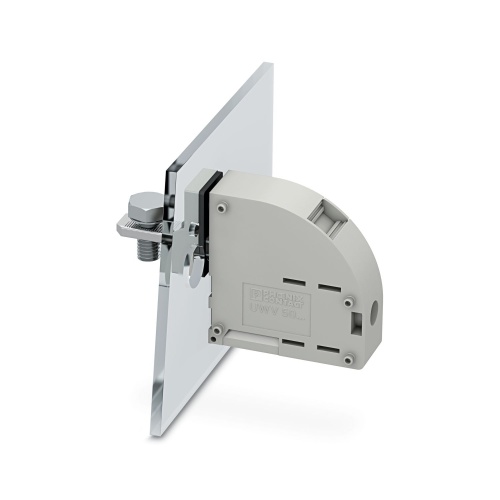

Phoenix Contact 1713845 Panel feed-through terminal block UWV 50-POT/S
Normally In Stock
Phoenix Contact 1713845 UWV 50-POT/S ,Al alloy,PA,I Panel feed-through terminal block
Condition: New
Usually ships Same Day or Next Day$23.17
Sale Price
$19.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1713845 The panel feed-through terminal block features a screw connection with tension sleeve and a cable lug connection option, accommodating single-position configurations. The maximum load current is 150 A, while the angle between the conductor and plug-in direction is -90°. Additionally, the width of this component is 18.8 mm, with a gray color scheme.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Voltage Rating
800 Volt

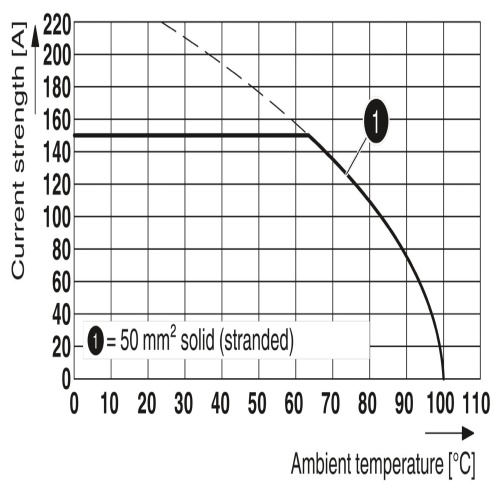

Terminal Block Amperage
150 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Terminal Block Voltage Rating
8 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
