Code: 153031

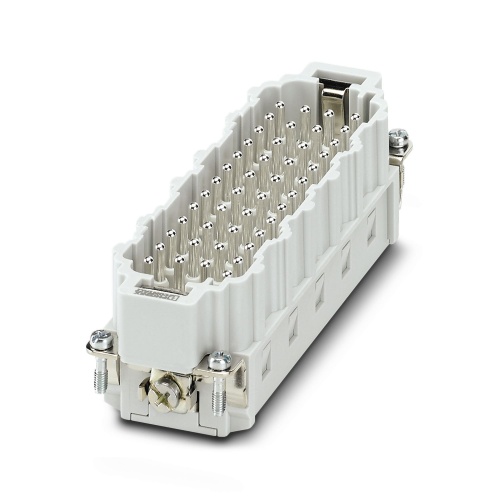

Phoenix Contact 1014424 Contact insert HC-BB46-I-PT-M
Normally In Stock
Phoenix Contact 1014424 - Contact insert - 46 Positions - Copper Alloy - 20 AWG - Gray - 16 Amp - 500 V
Condition: New
CALL FOR LEAD TIME$70.04
Sale Price
$58.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1014424 A contact insert with a B24 rating is designed for power applications and features 46 power contacts, zero control contacts, and one connection per position. The connection type is push-in, suitable for high currents up to 16 A, and has a rated voltage of 500 V with insulation thicknesses ranging from 0.5 mm2 to 2.5 mm2.
Specifications
Connector Amperage
16 Amp
Connector Color
Gray
Connector Size
B24
Connector Material
PC
Connector Material
Copper Alloy
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
46
Connector Voltage
500 Volt
Features

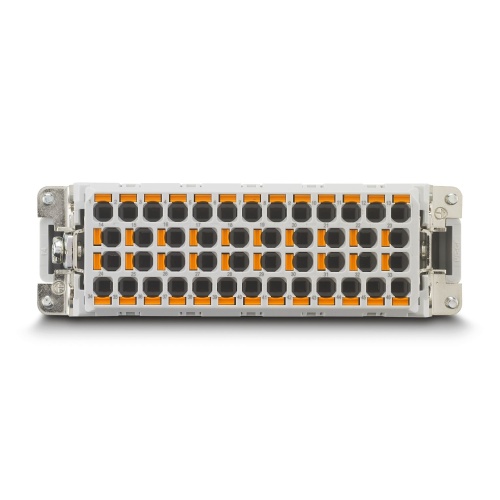

Easy installation without tools, even when mounted, with push-in connection technology
Shortest installation time compared to other connection technologies
Quick and effortless wiring, in particular when space is tight
Automatic cabling with robots possible
Safe wiring and operation with color-coded actuators
Shock and vibration-resistant in accordance with DIN EN 61373

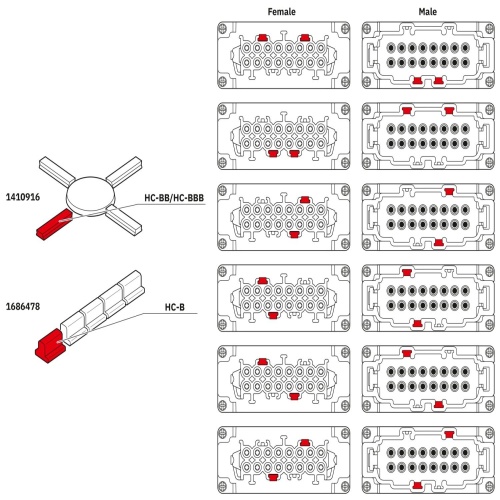

Cost-effective and fast coding with plastic profiles
High contact density
