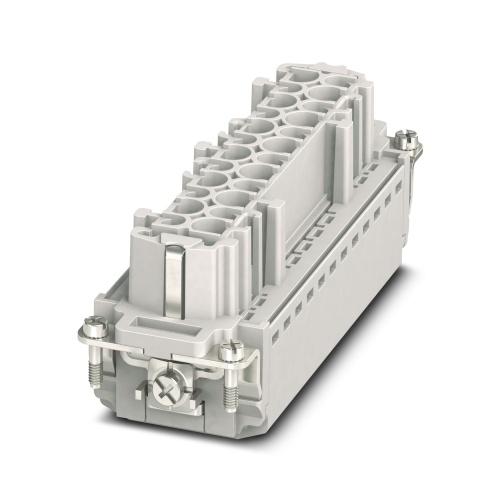

Phoenix Contact 1407735 Contact insert HC-B24-I-PT-F
Normally In Stock
Code: 153011
Phoenix Contact 1407735 - Contact insert - 24 Positions - Copper Alloy - 26 AWG - 16 Amp - 500 V - Push-In Connection
Condition: New
Usually ships Same Day or Next Day$33.40
Sale Price
$27.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1407735 A contact insert with a specified design is being manufactured for power applications, featuring 24+ positions, a B24 size, and one push-in connection per position, designed to handle a current rating of 500 V at 16 A with minimal cross-sectional area, measured at 0.14 mm2 and up to 2.5 mm2.
Specifications
Connector Amperage
16 Amp
Connector Size
B24
Connector Material
PC
Connector Material
Copper Alloy
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
24
Connector Voltage
500 Volt
Features
Easy installation without tools, even when mounted, with push-in connection technology
Shortest installation time compared to other connection technologies
Quick and effortless wiring, in particular when space is tight
Automatic cabling with robots possible
Safe wiring and operation with color-coded actuators
Shock and vibration-resistant in accordance with DIN EN 61373
Cost-effective and fast coding with plastic profiles
Test pick-off for 2 mm test plug
