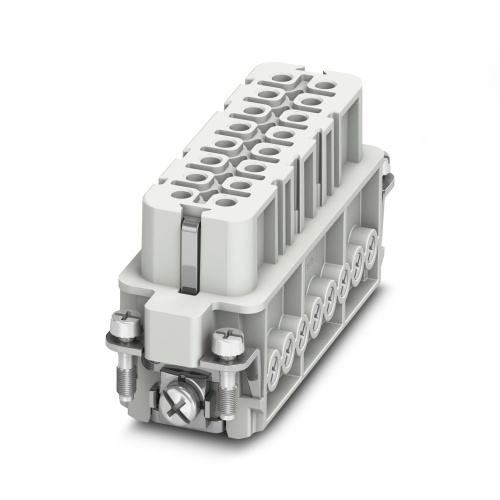

Phoenix Contact 1585346 Contact insert HC-A16-I-UT-F 17-32
Normally In Stock
Code: 152921
Phoenix Contact 1585346 - Contact insert - 16 Positions - Copper Alloy - 20 AWG - 16 Amp - 250 V
Condition: New
Usually ships Same Day or Next Day$28.70
Sale Price
$23.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1585346 The product specifications include a contact insert with varying numbers of positions, accommodating up to 16 poles (PE), and comes in two sizes: D25 and another size that is not specified. It features a socket connection, secured by a screw, and has a rated voltage of 250 V, with a maximum current capacity of 16 A and copper conductors of either 0.5 mm2 or 2.5 mm2.
Specifications
Connector Amperage
16 Amp
Connector Size
D25
Connector Material
PC
Connector Material
Copper Alloy
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
16
Connector Voltage
250 Volt
Features
Can be coded with plastic coding profile (order number 1410916)
For a test pin 2 mm in diameter
Shock and vibration-resistant in accordance with DIN EN 61373
Code: 152921
Phoenix Contact 1585346 Contact insert HC-A16-I-UT-F 17-32
