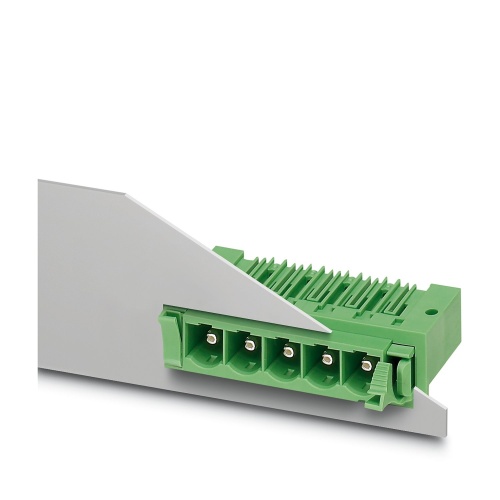

Phoenix Contact 1701456 The feed-through header has a nominal cross-sectional area of 16mm², with a green color and a nominal current rating of 76A. It is rated for a maximum voltage of 1000V (III/2) and features an Ag contact surface. The connection type is pin-based, with two potentials, one row, two positions, and two connections per header. This component falls within the product range DFK-PC 6-16/...-G and has a pitch of 10.16mm. It is designed for wave soldering, features linear pinning, and includes solder pins at specific distances. The plug-in system used is COMBICON PC 16, with standard alignment and no locking mechanism, and is packaged in cardboard without any additional mounting components or protective casing.
