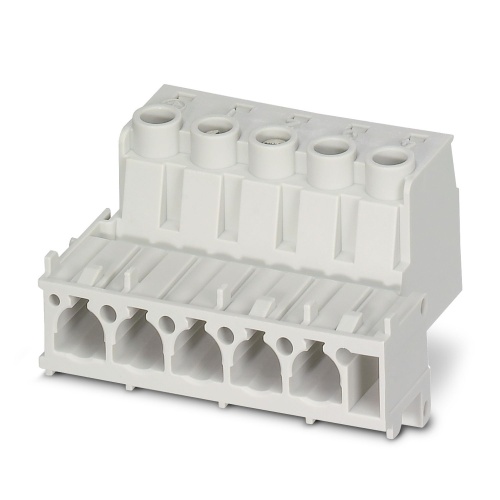

Phoenix Contact 1607748 Contact insert VC-AMS 5
Normally In Stock
Code: 151788
Phoenix Contact 1607748 - Contact insert - VARIOCON - 5 Positions - E-Cu 58 - 20 AWG - Light gray - 70 Amp - 1000 V - Screw Connection
Condition: New
Usually ships Same Day or Next Day $32.14
Sale Price
$26.78
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1607748 The contact insert is designed for use with articles featuring a VC3 design and light gray color, available in five different positions, each with a minimum conductor cross section of 0.5 mm2 and a maximum of 16 mm2. It has a rated voltage of 690 volts and can handle up to 70 amps of current, using a screw connection and pin-type contact arrangement that must be connected or disconnected when the article is under no load.
Specifications
Connector Amperage
70 Amp
Connector Size
VC3
Connector Color
Light Gray
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
5
Connector Material
E-Cu 58
Connector Voltage
1000 Volt
Features
Proven COMBICON technology
Universal connection
Can be keyed to prevent incorrect connection
