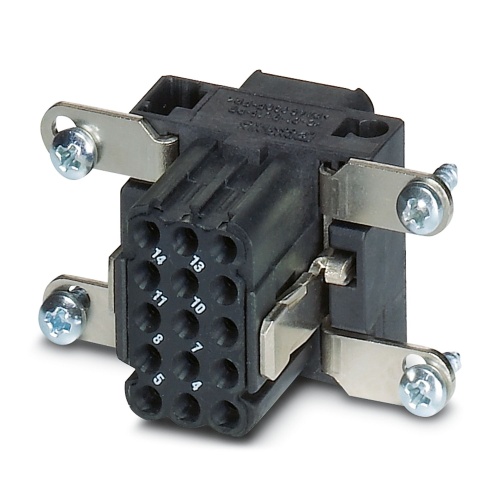

Phoenix Contact 1884801 Contact insert VC-D1-BU15-PE-R
Normally In Stock
Code: 151753
Phoenix Contact 1884801 - Contact insert - VARIOCON - 15 Positions - CuZn - 22 AWG - 10 Amp - Crimp Connection
Condition: New
Usually ships Same Day or Next Day $17.41
Sale Price
$14.51
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1884801 The contact insert has a range of articles including VARIOCON and comes in various designs such as VC1 with a housing material of PA, accommodating up to 15 positions with conductor cross sections ranging from 0.14 mm2 to 1.5 mm2. It is rated for 250V and 10A of current, utilizing crimp connections with socket types and can only be connected or disconnected when the device is under no load.
Specifications
Connector Amperage
10 Amp
Connector Size
VC1
Connector Material
Cuzn
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
15
Features
Pin and socket contacts can be used on both the plug and device sides
Contact carriers have two further capacitive PE contacts
The connection data of 250 V/10 A corresponds to that of the HEAVYCON DD series
