Code: 149974

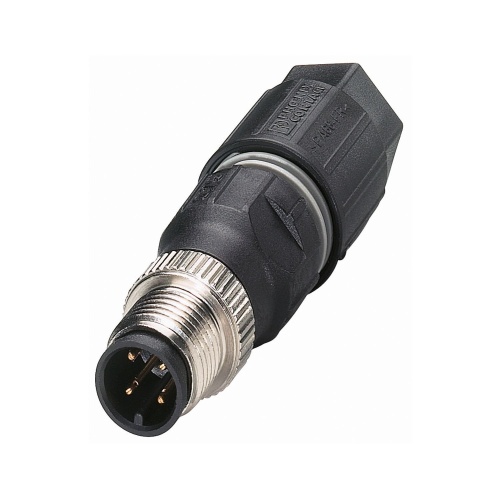

Phoenix Contact 1641785 Connector SACC-M12MS-4QO-0,75-M
Normally In Stock
Phoenix Contact 1641785 - Connector - 4 Positions - CuSn - 22 AWG - IP65 - Insulation Displacement Connection
Condition: New
Usually ships Same Day or Next Day$17.65
Sale Price
$14.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

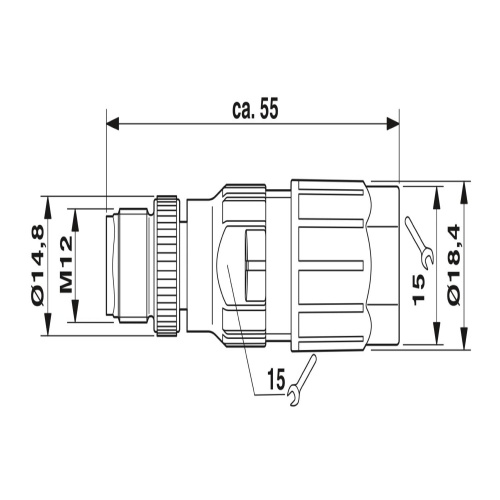

Phoenix Contact 1641785 The specified connector features a universal design with four positions, a straight M12 plug, and an insulation displacement connection. It is made from zinc die-cast materials, both internally and externally, with the external surface having a nickel plating. The connector accommodates cable diameters ranging from 4 mm to 8 mm.
Specifications
Connector Material
Cusn
Connector protection
IP65
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Connector - Cable Side
Features
Safe use in the field, thanks to a high degree of protection

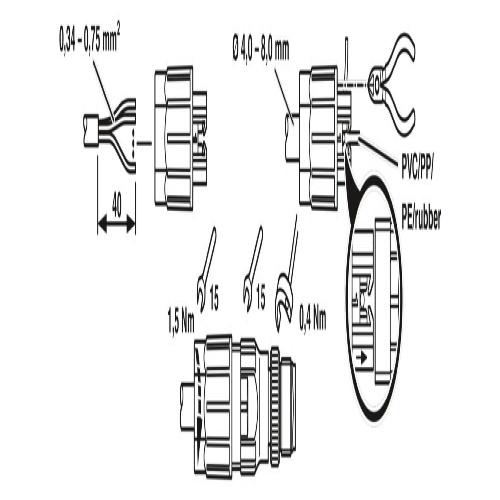

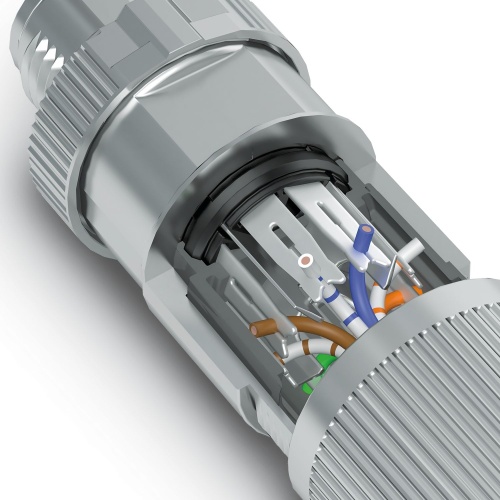

Insulation displacement connection: innovative and time-saving assembly without stripping the single wire

Code: 149974
Phoenix Contact 1641785 Connector SACC-M12MS-4QO-0,75-M
$17.65
Sale Price
$14.71
